Non-Tilting Utility Skates - Swivel

Swivel Top Non-Tilt Utility Skates were designed to be combined with their rigid top counterparts as the lead dollies for turning applications. They are also often used separately for heavy loads requiring full directional control. Each swivel top skate has a friction plate between the top frame of the dolly and bottom surface of the swivel plate to reduce swimming under load and eliminating the need for a locking mechanism.  Swivel tops are easily removable with an hex key wrench for straight line moving applications without the need to purchase additional skates.

These roller dollies combine the stability and increased load capacities of our larger straight line skates with the improved climbing and leading inherent to our tilting models.  Each skate is equipped with four 3-1/2″ Ø center support rollers and two 3-1/4″ Ø front and rear rollers, one on each end. The extra support rollers do not allow for tilting, however they maintain their climbing functionality and easier moving over uneven floors, welds, tracks, gaps, up ramps and more.

Steel Rollers…the best choice for all purpose moving. Steel Rollers provide maximum durability and can handle extended resting loads and even permanent installation. They excel in applications with rough or uneven floors. They are the ultimate workhorse.

7.5 Ton Capacity Each

UMS-HD-15

View Product

25 Ton Capacity Each

UMS-HD-50

View Product

37.5 Ton Capacity Each

UMS-HD-75

View Product

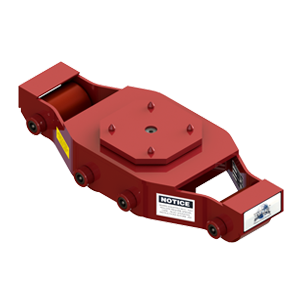

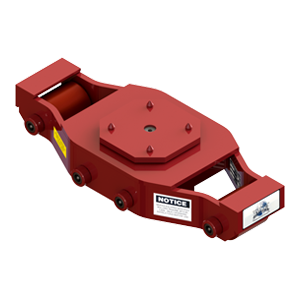

Polyurethane Coated Rollers…the ideal choice for floors and rolling surfaces that require maximum protection. Rolling surfaces, such as epoxy coated floors, are common in aerospace facilities, military installations and more, but the loads don’t get any lighter. To address this, our polyurethane coated rollers were researched and developed to move the heaviest loads with floor protection in mind. Not recommended for extended resting loads or on rough and debris riddled rolling surfaces.

7.5 Ton Capacity Each

UMS-HD-15-P

View Product

20 Ton Capacity Each

UMS-HD-50-P

View Product

20 Ton Capacity Each

UMS-HD-75-P

View Product

Turning Handle…help guide turns using all of our swivel top skates with all Utility Model Swivel Skates, both Tilting & Non-Tilting, with UMS prefix in the model number.

Turning Handle

STH-04800

View Product
